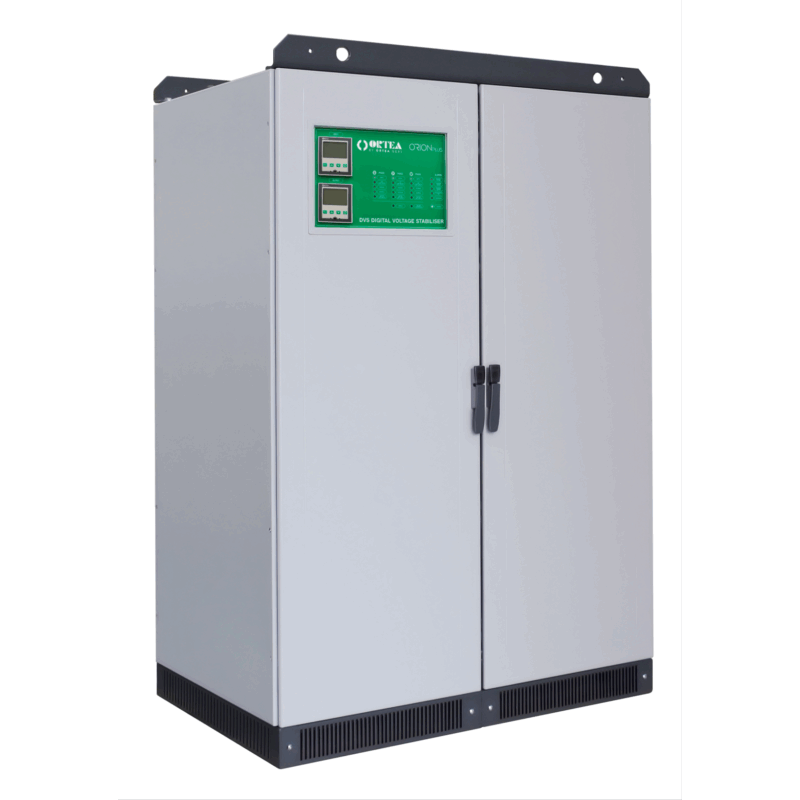

Orion plus

ELECTRO-MECHANICAL VOLTAGE STABILISERS
Orion plus

Technical specifications

Frequency
50Hz ±5% o 60Hz ±5%
Adjusting energy parameters
Independent phase control
Selectable target voltage
from 210V to 255V (L-N) / from 360V to 440V (L-L)
Output voltage accuracy
±0,5%
Admitted load variation
Up to 100%
Admitted load imbalance [%]
100
Cooling
Natural ventilation (from 35°C aided with fans)
Ambient temperature
-25/+45°C
Storage temperature
-25/+60°C
Max related humidity
<95% (non condensing)
Admitted overload
200% 2min.
Harmonic distorsion
None introduced
Colour
RAL 7035
Instrumentation
  • Input & Output digital multimetre
Installation
Indoor
Overvoltage protection
  • Class II output surge arrestors
  • Optimal voltage return through supercapacitors in case of black-out

Orion plus ±10%

type
rated power
max input current
rated output current
Data Sheet
125-10
125
200
180
160-10
160
257
231
200-10
200
321
289
250-10
250
401
361
320-10
320
513
462
400-10
400
642
577
500-10
500
802
722
630-10
630
1010
909
800-10
800
1283
1155
1000-10
1000
1604
1443
1250-10
1250
2005
1804
1600-10
1600
2566
2309
2000-10
2000
3208
2887
type
rated power
max input current
rated output current
Data Sheet
60-20
60
108
87
80-15
80
136
115
80-20
80
144
115
105-15
105
178
152
105-20
105
189
152
135-15
135
229
195
135-20
135
243
195
160-15
160
272
231
160-20
160
289
231
200-15
200
340
289
200-20
200
361
289
250-15
250
425
361
250-20
250
451
361
320-15
320
543
462
320-20
320
577
462
400-15
400
679
577
400-20
400
722
577
500-15
500
849
722
500-20
500
902
722
630-15
630
1070
909
630-20
630
1137
909
800-15
800
1359
1155
800-20
800
1443
1155
1000-15
1000
1698
1443
1000-20
1000
1804
1443
1250-15
1250
2123
1804
type
rated power
max input current
rated output current
Data Sheet
30-30
30
62
43
45-25
45
87
65
45-30
45
93
65
60-25
60
115
87
60-30
60
124
87
80-25
80
154
115
80-30
80
165
115
105-25
105
202
152
105-30
105
217
152
135-25
135
260
195
135-30
135
278
195
160-25
160
308
231
160-30
160
330
231
200-25
200
385
289
200-30
200
412
289
250-25
250
481
361
250-30
250
516
361
320-25
320
616
462
320-30
320
660
462
400-25
400
770
577
400-30
400
825
577
500-25
500
962
722
500-30
500
1031
722
630-25
630
1212
909
630-30
630
1299
909
800-25
800
1540
1155
type
rated power
max input current
rated output current
Data Sheet
45-15/35
45
100
65
60-15/35
60
133
87
80-15/35
80
178
115
90-15/35
90
200
130
135-15/35
135
300
195
160-15/35
160
355
231
200-15/35
200
444
289
250-15/35
250
555
361
320-15/35
320
711
462
400-15/35
400
888
577
500-15/35
500
1110
722
630-15/35
630
1399
909
800-15/35
800
1777
1155
type
rated power
max input current
rated output current
Data Sheet
30-15/45
30
79
43
45-15/45
45
118
65
60-15/45
60
157
87
80-15/45
80
210
115
105-15/45
105
276
152
135-15/45
135
354
195
160-15/45
160
420
231
200-15/45
200
525
289
250-15/45
250
656
361
320-15/45
320
840
462
400-15/45
400
1050
577
500-15/45
500
1312
722
630-15/45
630
1653
909
