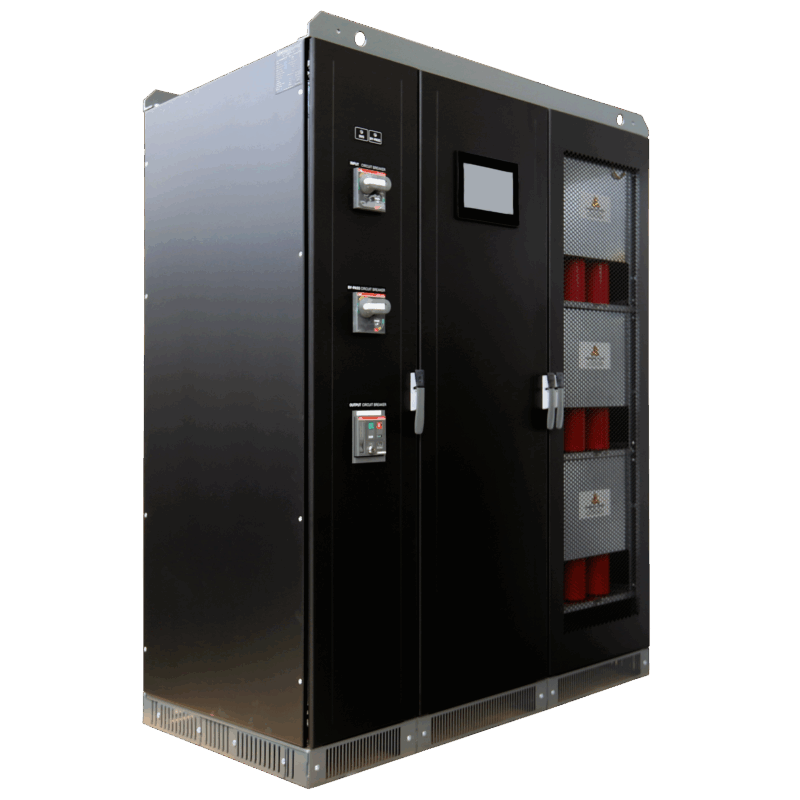

Oxygen K

SAG COMPENSATORS
Oxygen K

Technical specifications

Frequency
50Hz ±5% o 60Hz ±5%
Voltage regulation
IGBT controlled (double conversion technology)
Adjusting energy parameters
Independent phase control
Selectable target voltage
380-400-415V (440-460-480V**)
Output voltage accuracy
±0,5%
Admitted load variation
Up to 100%
Admitted load imbalance [%]
100
Cooling
Forced ventilation
Ambient temperature
0/+40°C
Storage temperature
0/+60°C
Max related humidity
<95% (non condensing)
Admitted overload
110% continuous, 120% for 60s, >120% automatic by-pass protection
Colour
RAL 9005
Instrumentation
  • 10" touch panel, multilingual (on request remotely available by dedicated software connected to the same Ethernet network)
Installation
Indoor
Communication system
MODBUS TCP/IP
Overvoltage protection
  • Class I input surge arrestors
  • Class II output surge arrestors
Additional protections
  • Automatic by-pass protection
  • Input automatic circuit breaker
  • By-pass line with interlocked circuit breaker
  • Output interlocked automatic circuit breaker

Oxygen K 10-40

type
weight
rated power
max input current
rated output current
Data Sheet
200-10-40K
1350
200
321
289
250-10-40K
1400
250
401
361
320-10-40K
1400
320
513
462
400-10-40K
1600
400
642
577
500-10-40K
1900
500
802
722
630-10-40K
3200
630
1010
909
800-10-40K
3500
800
1283
1155
1000-10-40K
4500
1000
1604
1443
1250-10-40K
5300
1250
2005
1804
1600-10-40K
5800
1600
2566
2309
2000-10-40K
6600
2000
3208
2887
2500-10-40K
7200
2500
4009
3609
type
weight
rated power
max input current
rated output current
Data Sheet
200-15-50K
1435
200
340
289
250-15-50K
1455
250
425
361
320-15-50K
1775
320
543
462
400-15-50K
3000
400
679
577
500-15-50K
3300
500
849
722
630-15-50K
4300
630
1070
909
800-15-50K
5000
800
1359
1155
1000-15-50K
5800
1000
1698
1443
1250-15-50K
6600
1250
2123
1804
1600-15-50K
7100
1600
2717
2309
